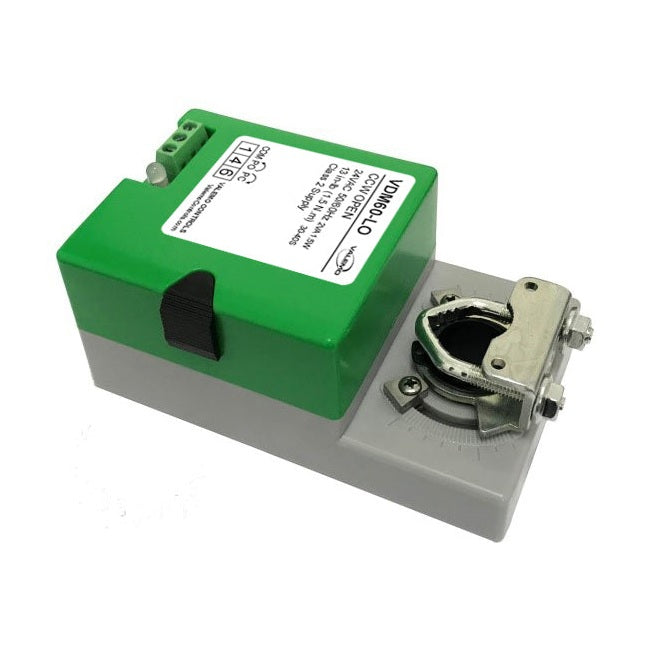

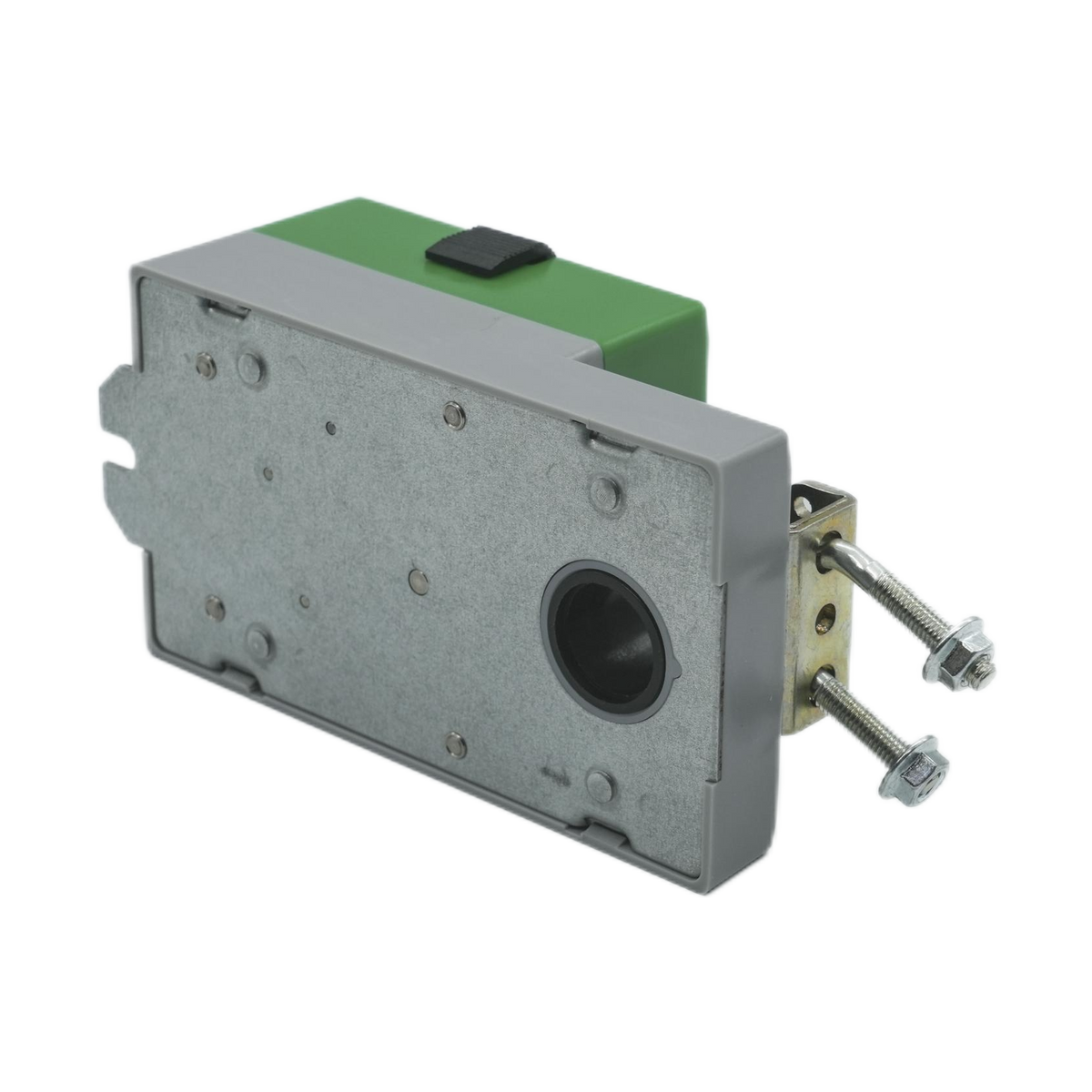

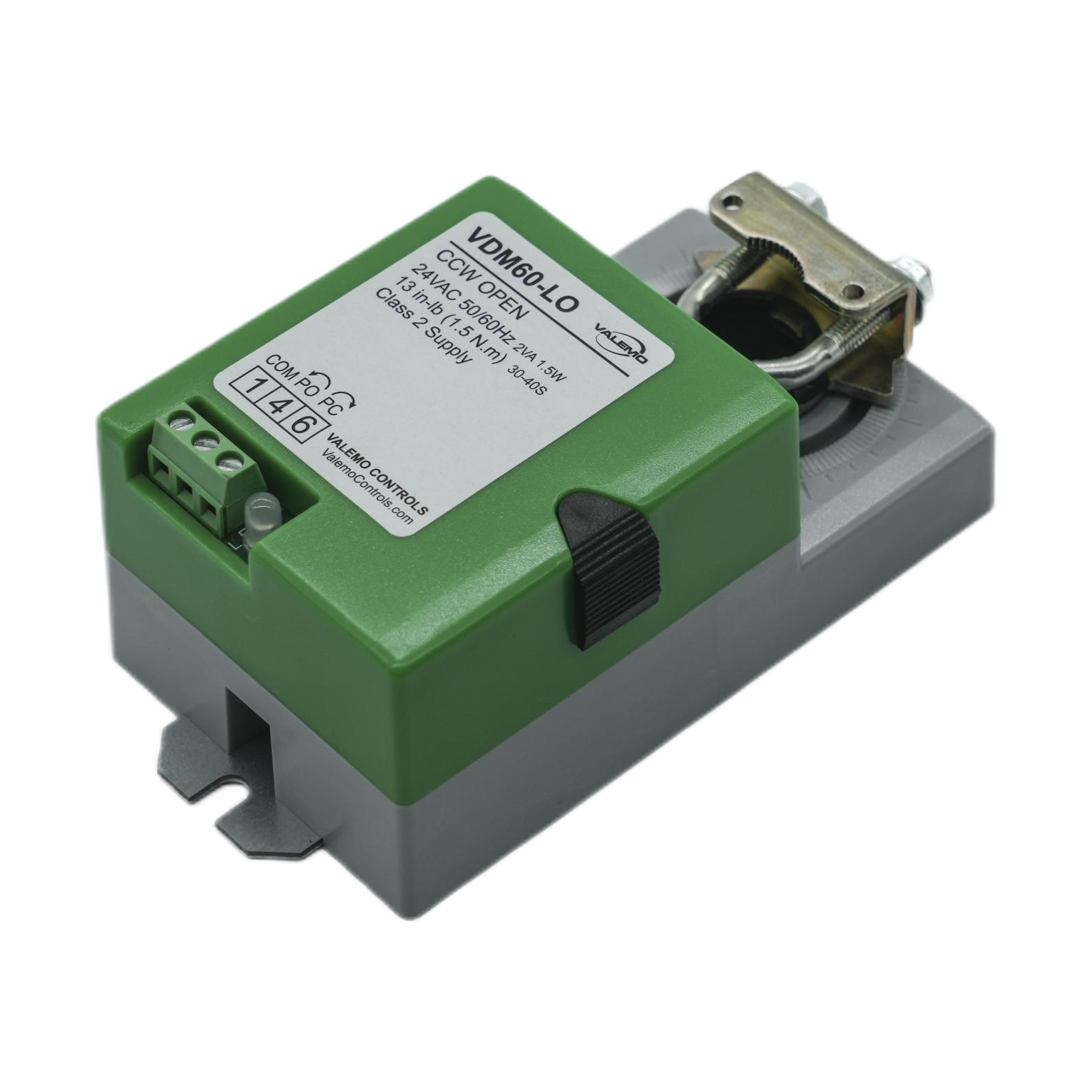

VDM60-LO HVAC Damper Actuator, 24VAC/DC On/Off, Floating Non-Spring Return

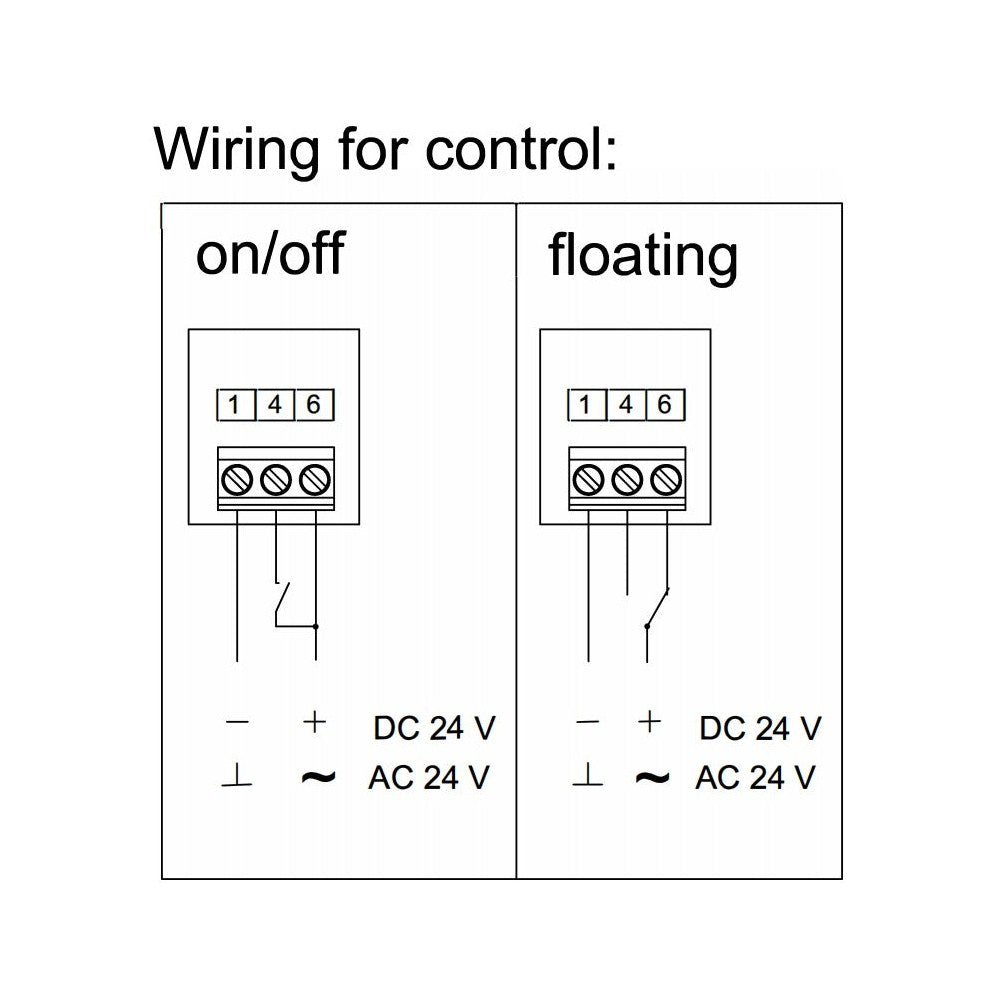

The VDM60 Series are typically used to control two-position zone systems, or commercial / residential HVAC dampers. They are designed for use with on/off or floating-point thermostats, controllers, or building automation systems.

Quality and commercial grade, high-torque (13 in-lb), low power consumption (under 2W). Long cycle life, easy installation.

• Compact: smallest profile on the market of similar torque.
• Bi-color LED status indication: Green/Red for open/close positions.

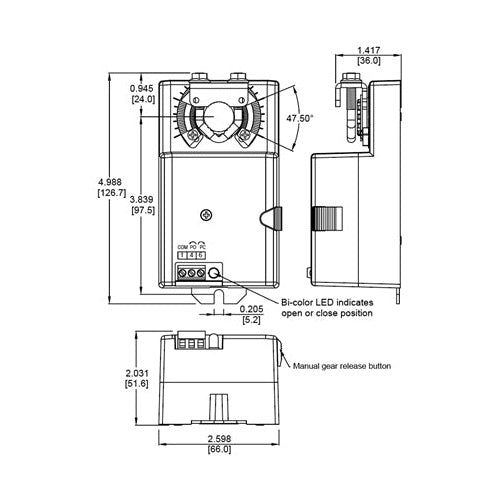

• Adjustable stop at both open and close ends.
• Manual gear release button simplifies actuator setup.
• Terminal block makes wiring easy in the field.
• Economic solution to large-torque needs, interchangeable with common installations.
• Over 250K cycles of flawless operation.

User Manual / Specification (PDF)
